ST-1016 Solder Smoke Absorber

Authorized Distributor for ATTEN Products

Precision soldering equipment for professionals and industry.

Product Description

Power is 22W.
Desktop-type with vertical and horizontal dual-use.
Remove soldering smoke and fumes quickly and safely.
Highly activated carbon material with strong absorb function.
LED lighting function.

Features:

Remove close-up or widely range of solder smoke.
Two gears LED light for dark and brighter working environment use.

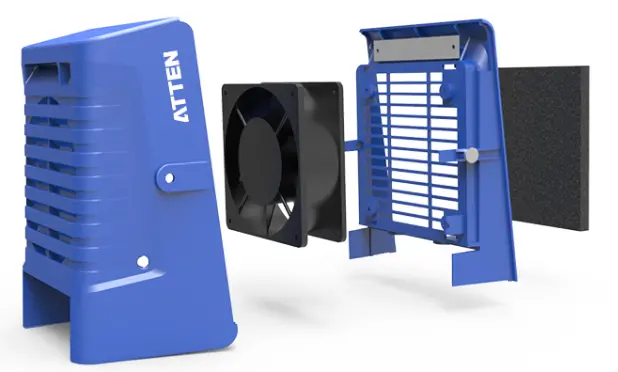

Easy to replace activated carbon filter.

Product Features

Hidden

Technical Parameters

♦ Specifications:

Model	ST-1016
Power consumption	110V AC/60Hz/22W 220V AC/50Hz/16W
Maximum suction capacity	1.03m³/min
Dimensions	103.3161.8217.2mm
Filter size	14214210mm

Test Item		Test Data
Air volume (vertical) m³/min		1.03
Air volume (horizontal) m³/min		0.4
Air flow (vertical) m/s		1.0
Air flow (horizontal) m/s		2.6

♦ Packing List

Solder Smoke Absorber	ST-1016
Activated Carbon Filter	1pc
User Manual	1pc
