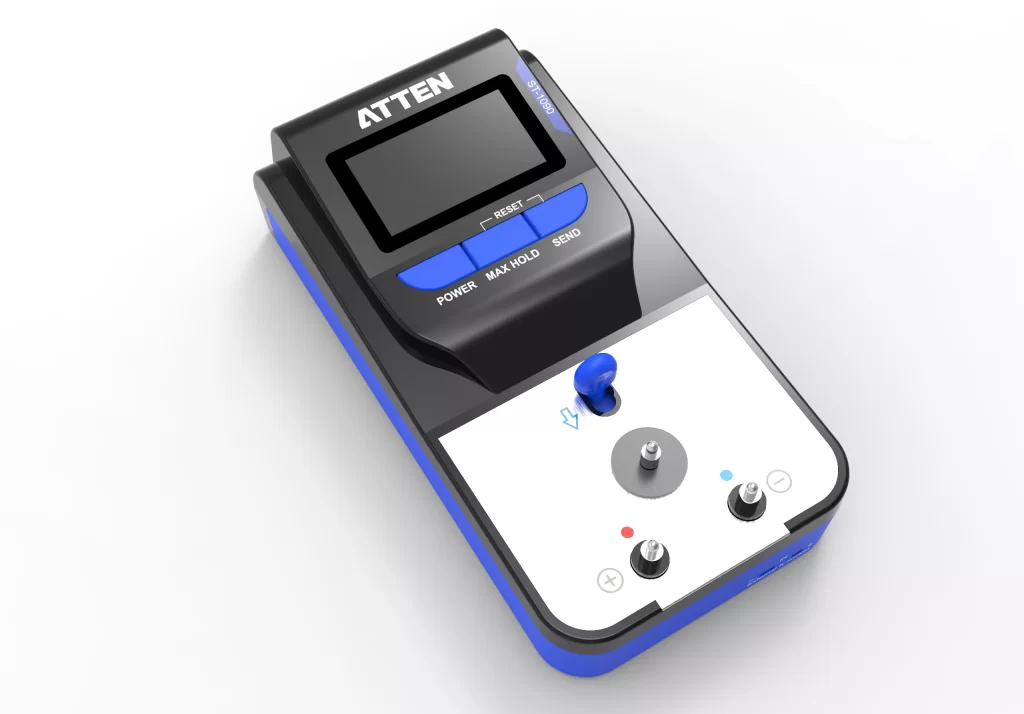

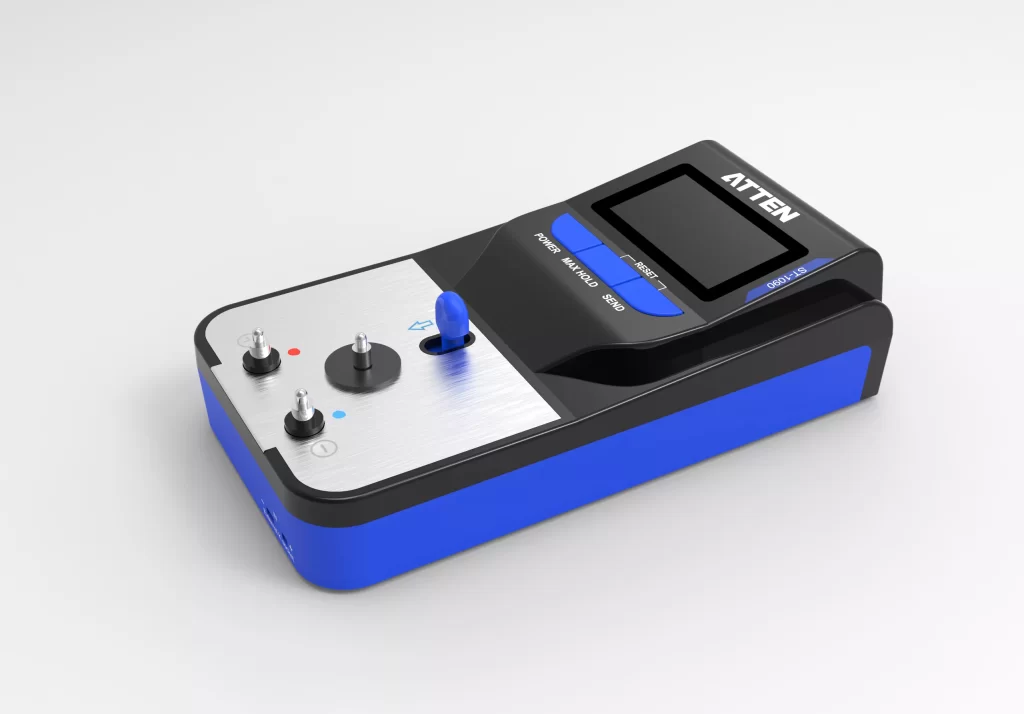

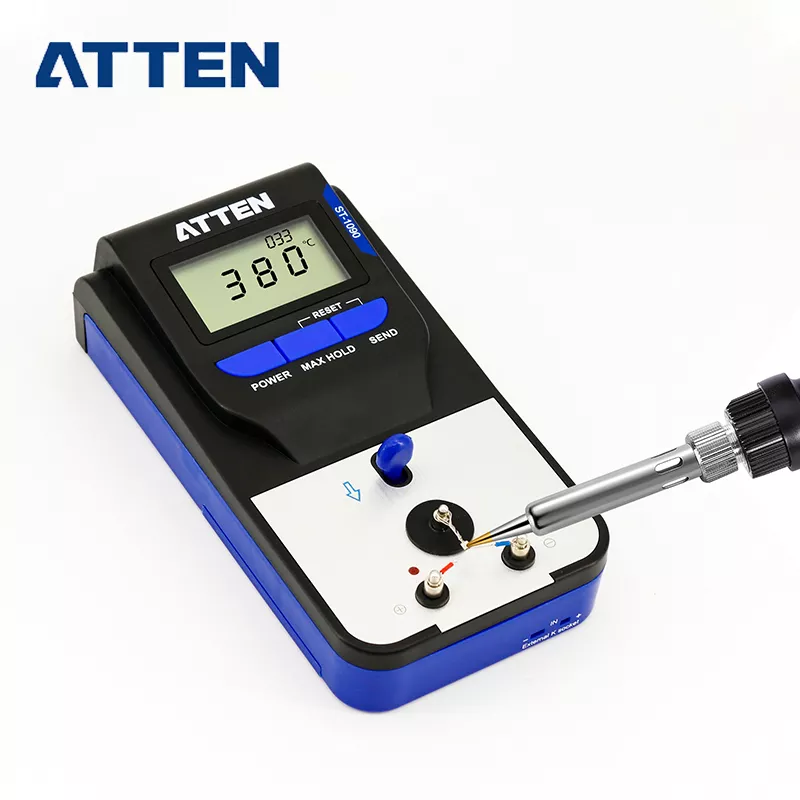

Soldering Iron Temperature Tester ST-1090

Authorized Distributor for ATTEN Products

Precision soldering equipment for professionals and industry.

Product Description

  • Large LCD screen.
  • Accurate temperature measurement 0-800℃.
  • Performance stable and easy to operate.
  • IR temperature calibration.
  • USB communication function.
  • Automatic shut down function.



Features:

  • Power on/off function. ℃/℉ is available and exchangeable.
  • MAX HOLD function, to grab and display the maximum temperature.
  • Max 999 times sensing wire used character can be shown on screen.
  • When the sensing wire is used for 50 times, it will flash to prompt to replace the sensing wire.
  • Connect computer with USB to realize automatic data collection.
  • Infrared (IR) temperature calibration function, can be used with ST-3150, to calibrate temperature.
  • It will tell you when the battery is running low.
  • Automatic error reporting, when sensing wire damaged or no sensing wire.





Product Features

Hidden

Technical Parameters

♦ Specifications:

Model     ST-1090
     Resolution      1℃/1℉
     Temperature range     0-800℃/32-1500℉
     Temperature accuracy      ±5℃ (±9℉)
     Sensing wire      K-type thermocouple
     Display      LCD
     Power      9V DC High-performance carbon bettery
     Operating environment      0-40℃/32-104℉
     Size      75*143.5*41.5mm
     Weight      185g



♦ Packing List:

 ST-1090        1   pc
      K-type thermocouple test wire         1    pc
      Sensor         10  pcs
      MINI USB data line         1    pc
      Manual         1    pc
