Ionizing air blower KF-19PL

Authorized Distributor for KESD Products

Static control solutions for precision electronics and cleanrooms.

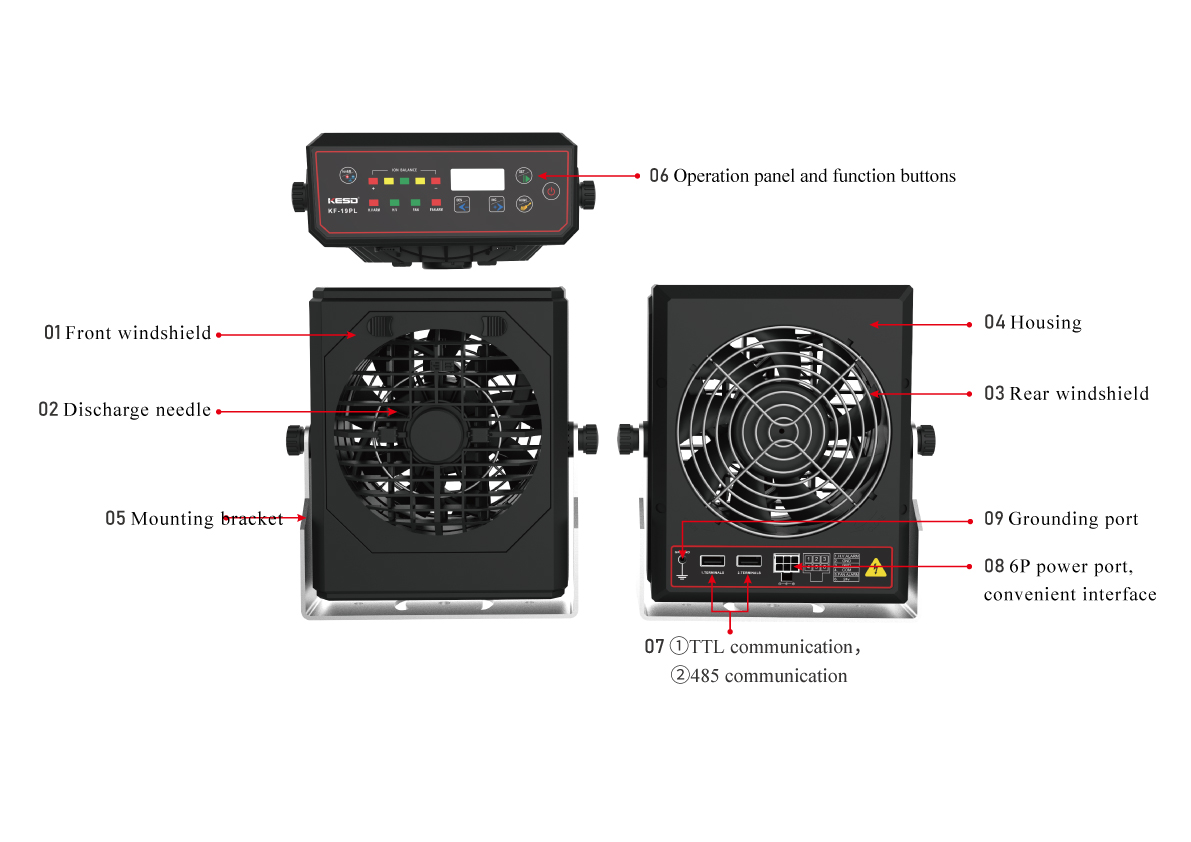

Product Features

The product has an automatic cleaning function for the discharge needle, and during the automatic cleaning process, it takes into account the reverse state to prevent dust from being blown onto the product.
Ion balance can be displayed in a range, with ion balance indication as a digital display.
The automatic cleaning time can be set freely within 0-999 hours based on the workshop environmental level, and the set cleaning time is displayed through LED digital tubes.
The product has a whole machine lock function and abnormal alarm function (FAN/HV)
The ion balance can be adjusted through the product panel buttons, with the ion balance adjustment range being within±5V. PS=balance adjustment, DN=output adjustment.
Mode adjustment: Fbol automatic adjustment, FboF manual adjustment.

Technical Parameter

Category	Parameters	Category	Parameters
Input voltage	DC24V	Wind volume	2.44~4.25m³/min
Ion balance	±5V(adjustable positive and negative ion balance)	Ozone concentration	≤0.015ppm(distance 50mm)
Mode of voltage application	AC mode/±7KV	Environmental temperature	18~26°C
Weight	0.8kg(including bracket)	Environmental humidity	50~65%RH(no condensation no water drop condensation)
Power consumption	≤21.5W	Noise	≤69db

Trusted Brands We Carry

Anti-static test condition
Operating voltage:DC24V Test voltage:±1000V-±100V Ambient temperature:23℃±2℃
