- Compatible with various type of soldering tools, utility model with multiple functions.
- Max Power is 150W.
- Big silicone buttons operate comfortable and reliable.
- All kinds of parameter data and information in the form of graphics display.
- Can automatically recognize the soldering tools and upload the corresponding parameters.
- Provide 3 groups shortcut temperature to simplify operations.
Features:
Easy temperature setting.
- Short press “MENU” to select setting channel, then press “UP”/“DOWN” key to adjust the temperature.
Quick call short-cut temperature
- Short press “MENU” to select setting channel, then short press key 1/2/3 to quickly call the set temperature. Long press key 1/3 to turn on/off channel 1/2.
User-friendly menu enables system setting easier.
- Support Chinese/English, ℃/℉, Password, Keypad tone, Temp offset, Standby temperature, Standby/Shutdown delay, Shortcut/Fix temp, Ceiling/Lower limit temperature setting.
 |
 |
 |
 |
PC Software Control System
- The PC software can be used under the following operating system: win XP, win 7

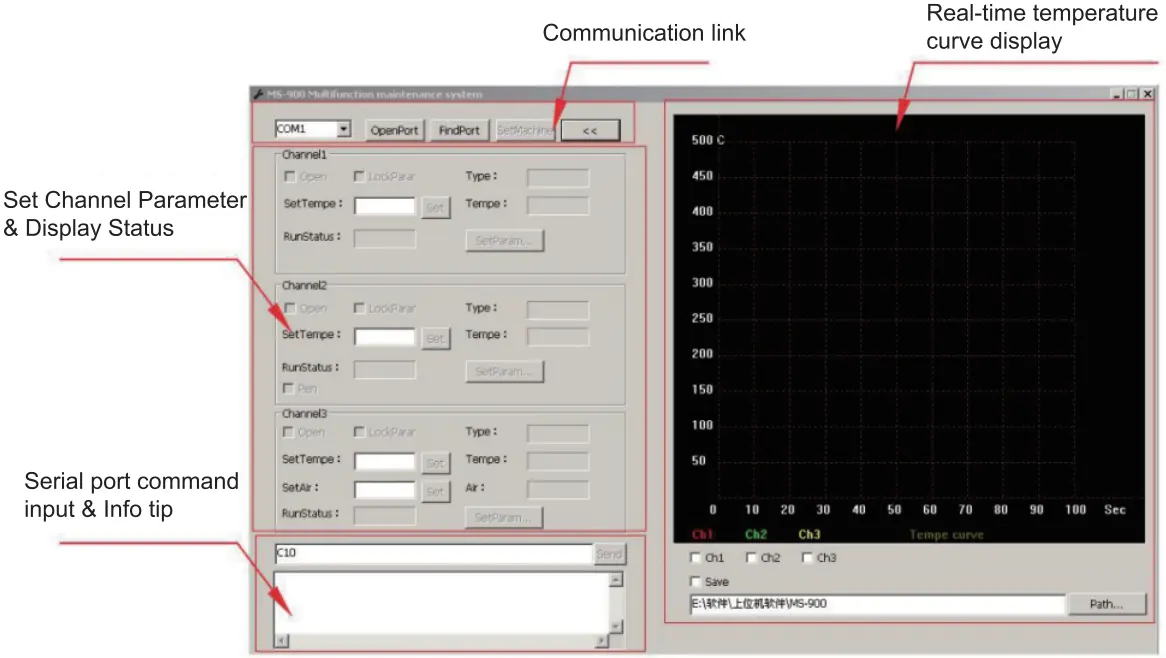

Software interface included 4 functions modules
- Communication module: display product model, communication mode, net address, communication port, etc.
- Parameter setting module display product parameter setting and the real-time parameter information.
- Info tip module including errors, important operating hints, etc.
- Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.
Heater Replacement：
 |
 |
 |
 |
 |
 |
 |
