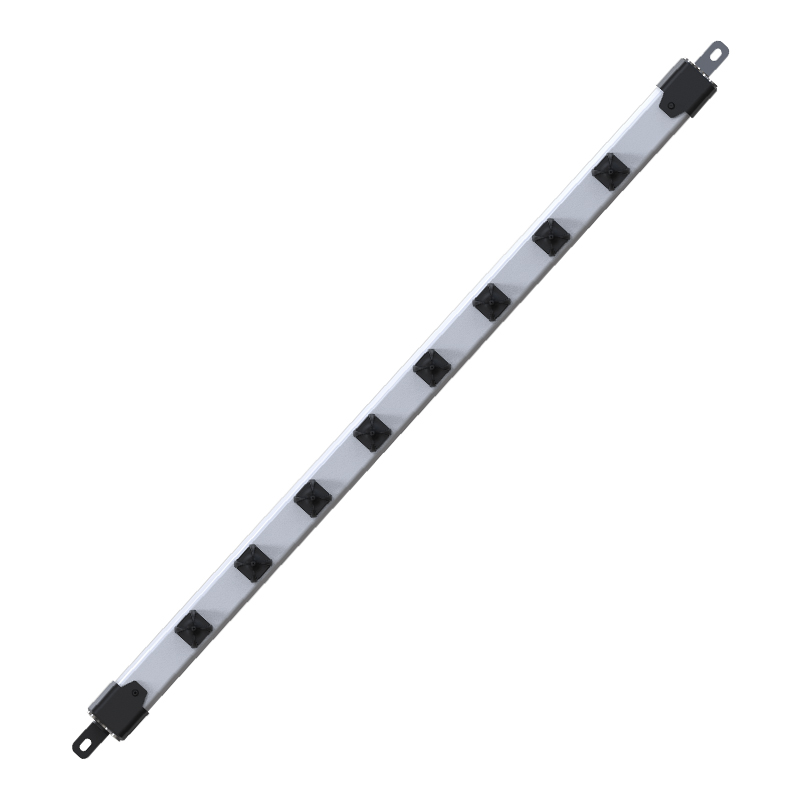

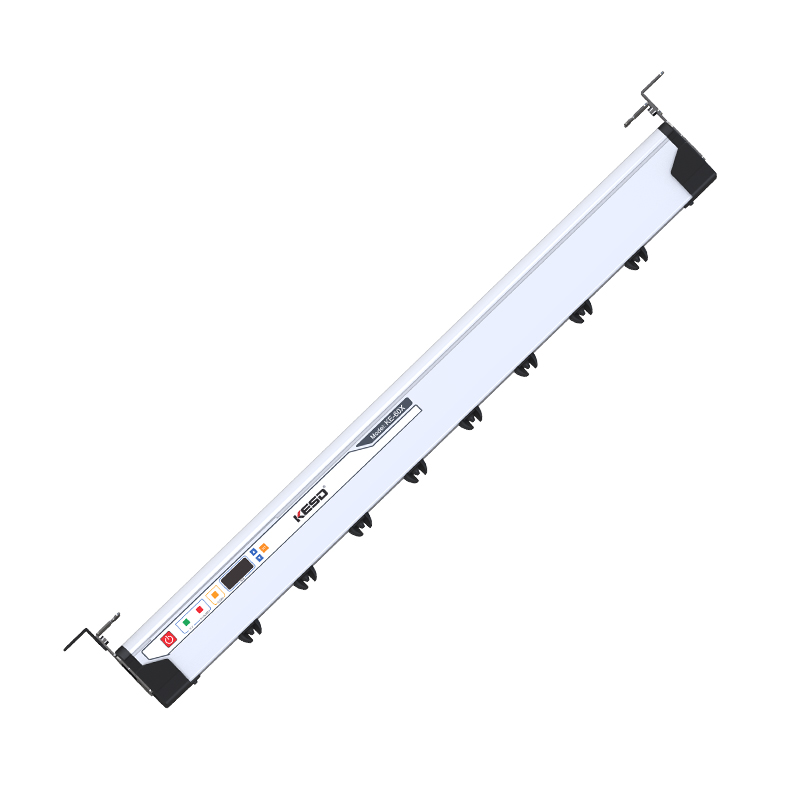

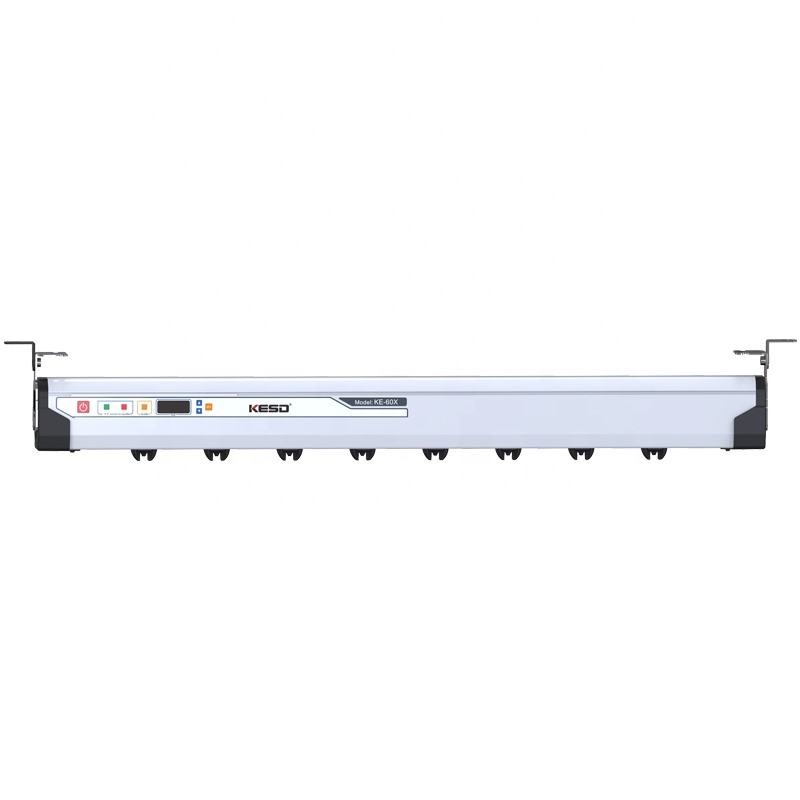

Low voltage and high frequency AC type ionizing air bar KE-60X

Authorized Distributor for KESD Products

Static control solutions for precision electronics and cleanrooms.

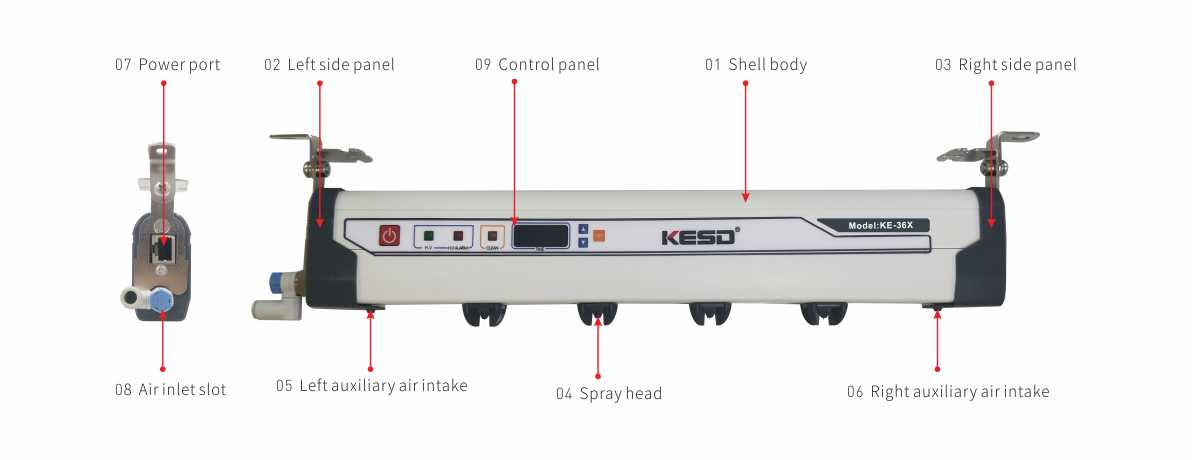

Product Features

Kinetic ion balance system, fast in addition to static electricity.

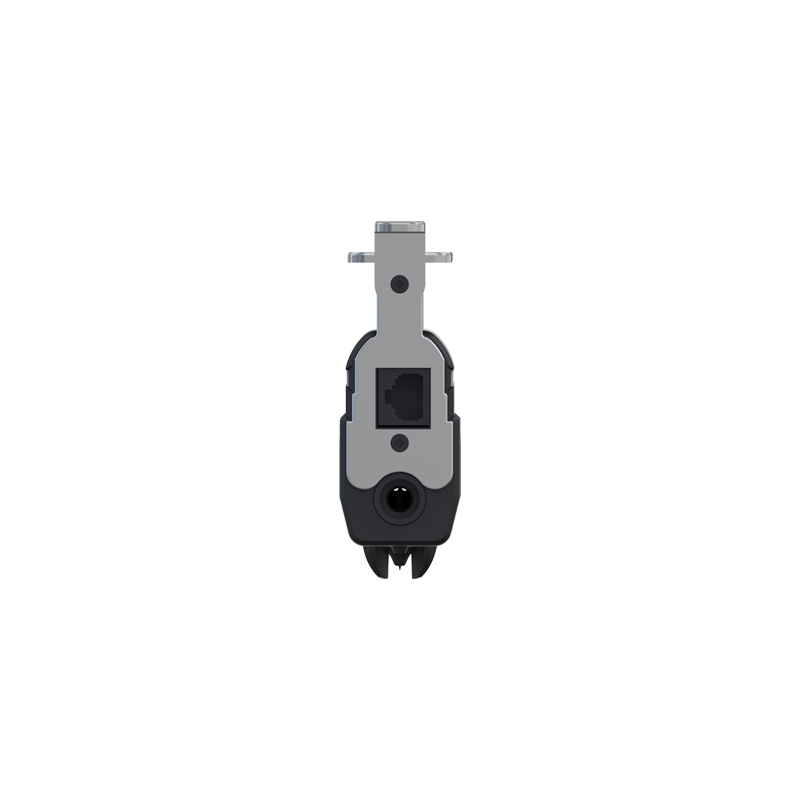

The power supply uses side wiring to ensure front and rear space.
It adopts high frequency AC method, the frequency can reach 68000Hz.
Equipped with high-voltage normal operation indicator and high-voltage abnormal operation indicator.
The speed of static elimination is related to the air flow, so the air flow must be increased for high-speed static elimination.
Set the maintenance time according to the actual environment of the workshop, remind the staff of regular maintenance, and set the time freely from 0-999 hours.

Technical Parameter

Category	Parameters	Category	Parameters
Input	DC24V	Decay time	2.0S
Ion balance	0±20V	Ozone Concentration	Below 0.035ppm(distance 50mm)
Clean timer set	0-999 hours	Environment Temperature	0-40 degree
Static Voltage	High Frequency AC method /_+2200v	Temperature Humidity	15-70%RH (no water drop condensation)
Air presure apploication range( MPa)			0.1-0.5 MPa
Typical power	≤ 5.8W	Gas flow	≤ 113.5L/min（0.4Mpa Air pressure）

Anti-static test condition
Working voltage : DC 24V Test voltge : ± 1000v – ± 100V Evironment temperature: 23°C ± 2℃
Distance	Decay time(Postive /positive )	Ion balance	Notes: 1: Test meters : TREK156A 2：Decay time from ±1000V ±100V; 3: Use KE-60X no decline airflow with air pressure of o.20Mpa and 0.5Mpa respectively.
300mm	0.5s~0.6s	0±20v
600mm	1.3s~1.5s	0±20v
900mm	2.0s~2.2s	0±20v
